ONE-PIECE FRAC FITTING

(Hammer Union)

Size: 3”, 4”, 6” and 8”

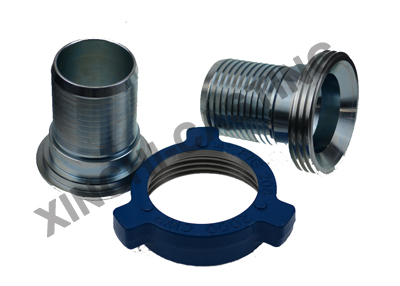

Type: Full Set, Male End, Female End, Wing Nut

Material: Machined Iron to ASTM standard, zinc plated and painted.

Working Pressure:

400 PSI working pressure at 70℉ for 3” and 4”; 4:1 safety factor

150 PSI working pressure at 70℉ for 6”; 4:1 safety factor

150 PSI working pressure at 70℉ for 8”; 4:1 safety factor

Application: One-Piece Frac Fitting (hammer union) is widely used in the fast paced transfer of water, chemicals, and sand slurry to a hydraulic fracturing site. One-piece stem design eliminates the leak path common with two pieces threaded systems interchangeable with current fitting.

Main Market: North America, Australia, Europe, Africa and Middle East

MOQ: 200 Each Product

Manufacturing Capacity: 50,000 Pieces/Month

Delivery Period: 25-45 Days

Port: Ningbo and Shanghai
